Mer information
| Vikt | 1 kg |
|---|

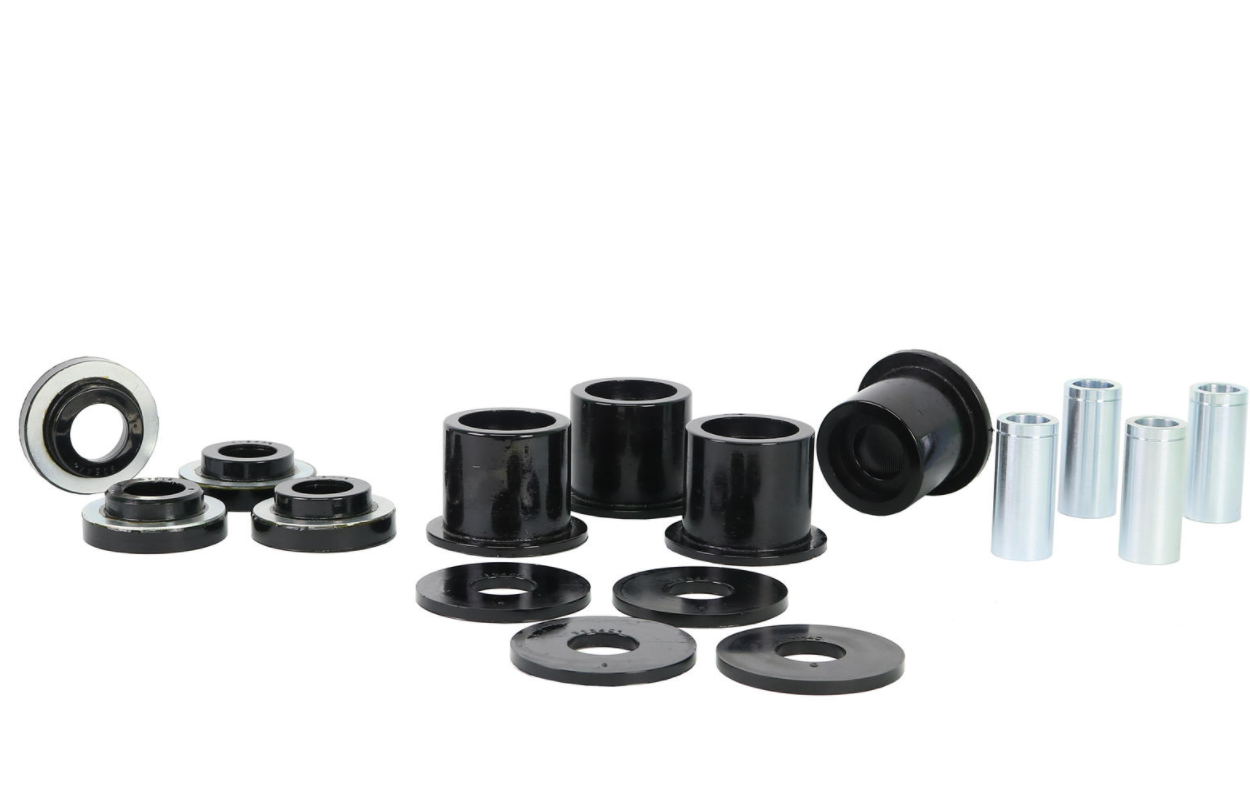

Whiteline Rear Subframe – Mount Bushing Kit
1 857 kr
Bussningskit till bakvagnsbryggan.
Motverkar ”wheel hops”
De över 30 år gamla gummibussningarna brukar ha sett bättre dagar. Detta är en perfekt uppgradering som bibehåller lite mer av komforten jämfört med aluminiumbussningar men ändå är styva.
Information från tillverkaren:
This easy to install kit is designed to change the inclination of the rear sub-frame whilst reducing bushing compliance. By arranging in different planes it is possible to induce rear squat (maximum traction) or anti-squat (drift) properties. This product may induce increased NVH levels.
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
| Bush Type | Bush Qty | OD A | ID B | L C | FL D | FLOD E | C/Tube QTY | C/Tube Size | Similar Bushing Size |
| 1 | 4 | 47.8 mm | 30 mm | 23.7 mm | 13.2 mm | 70 mm | 4 | 30×21.2×68 mm | click here |
| 1 | 4 | 62.8 mm | 29.5 mm | 59 mm | 4.9 mm | 59 mm | 4 | 30×21.2×68 mm | click here |
| 7 | 4 | 80 mm | 30.2 mm | 6.2 mm | 4 | 30×21.2×68 mm | click here | ||
Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register
Installation
| Install Guide | Fitment Time | Degree of Difficulty | Recommend Wheel Alignment |
| Click to Download | 4 hrs | Trade Specialist | Yes |
| Press Sleeve # (IN) | Press Plate # (IN) | Press Sleeve # (OUT) | Press Plate # (OUT) | Support Sleeve # | Press Plate # | Threaded Rod # | Press In/Out Kit |
| N/A | N/A | 04 | EVEN A | 07 | ODD A | M16 | WTK001 |
Use the above press Sleeves, Plates and Rods from the Whiteline Press In/Out kit WTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Whiteline bushings.
Packaged Weight and Dimensions
| Units | Weight | Length | Width | Height | Fitment Difficulty |
| cm/kg | 1.85kg | 40cm | 20cm | 10cm | |
| in/lbs | 4.079lbs | 16″ | 8″ | 4″ | |
KCA518
Vehicle Applications
KCA518 is suitable for the following vehicles. Select a vehicle for specific fitment details:
Beställningsvara, leveranstid mellan 2-30 dagar.
